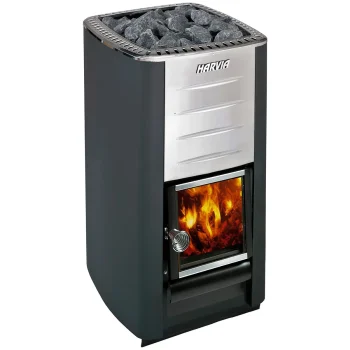

The Harvia M3 is a traditional wood-burning sauna heater designed to deliver an authentic Finnish sauna experience. With its 16.5kW output, it’s ideal for sauna rooms ranging from 6 to 13 cubic meters. The heater features a sleek graphite black finish, a stainless steel air-flow spoiler, and a glass door that allows the warm glow of the fire to enhance the sauna atmosphere. Its efficient design ensures even heat distribution and excellent air circulation, making every sauna session enjoyable. The included flue kit facilitates safe and straightforward installation.
FEATURES
High Heat Output – 16.5kW
With a robust 16.5kW power output, this wood-burning heater is ideal for sauna rooms sized between 6 to 13 cubic meters. It quickly raises temperatures, delivering consistent warmth throughout your sauna session.
Generous Stone Capacity – 30 kg
The heater accommodates up to 30 kilograms of sauna stones, ensuring excellent heat retention and extended steam generation. This allows for a soothing, long-lasting sauna experience with minimal reloading.
Glass Door with Cast-Iron Frame
The M3 is equipped with a glass door, allowing the warm glow of the fire to complement the sauna atmosphere. The cast-iron frame ensures durability and adds a touch of elegance.
Optional Pipe Model Water Heater Compatibility
The M3 wood-burning heater can be equipped with a pipe model water heater for added convenience, allowing you to heat water simultaneously during your sauna session.
Stainless Steel Air-Flow Spoiler
Enhances air circulation within the sauna, promoting even heat distribution and a more comfortable environment.
Instructions for Using Your Harvia Sauna Heater
Piling of the Sauna Stones
Properly arranging sauna heater stones is essential for both safety and warranty compliance. Follow these guidelines:
Use suitable sauna stone materials such as peridotite, olivine diabase, olivine, and vulcanite.
- Only use cleavage surfaces and/or rounded stones on your sauna heater.
- If heating elements come into contact with the stones, use rounded stones only in the outer layers of the stone space.
- Decorative stones should be placed loosely to allow air circulation and should not touch heating elements.
- Stones should be 5–15 cm in diameter.
- Wash off dust from the stones before piling them into the heater.
- When placing the stones, don’t drop stones into the heater.
- Don’t wedge stones between heating elements.
- Space stones to ensure proper air circulation.
- Pile stones to support each other rather than placing the weight on heating elements.
- Avoid forming a high pile of stones on top of the heater.
- Don’t place any objects or devices inside or near the heater that could alter airflow.
Heater Maintenance
Sauna stones can disintegrate due to temperature fluctuations. Rearrange stones at least annually, or more often with frequent sauna use.
Remove any disintegrated stones from the heater’s bottom and replace them with new ones to maintain optimal heating and prevent overheating.
Heating Your Sauna with Harvia Sauna Heater
When using the heater for the first time, both the heater and stones may emit odors. Efficiently ventilate the sauna room to remove these odors. If the heater’s output matches the sauna room’s size, it will take about an hour for a properly insulated sauna to reach the desired bathing temperature. The sauna stones typically reach this temperature simultaneously with the sauna room.
SPECIFICATIONS
| Specification | Details |
|---|---|
| Power Output | 16.5 kW |
| Recommended Room Volume | 6–13 m³ |
| Stone Capacity | 30 kg |
| Flue Pipe Diameter | 115 mm |
| Max Firewood Length | 350 mm |
| Heater Dimensions (H x W x D) | 710 mm x 390 mm x 430 mm |
| Weight | 44.2 kg |
| Fire Chamber Cover Thickness | 5 mm |
| Safety Distances (ceiling/sides) | 1200 mm / 100 mm |
WHAT’S INCLUDED
Harvia M3 16.5kW Wood-Burning Sauna Heater
Full Stainless Steel Flue Kit
Removable Ash Pan
User Manual
Note: Sauna stones are not included and should be purchased separately.
Experience Modern Luxury with Harvia Sauna Heater

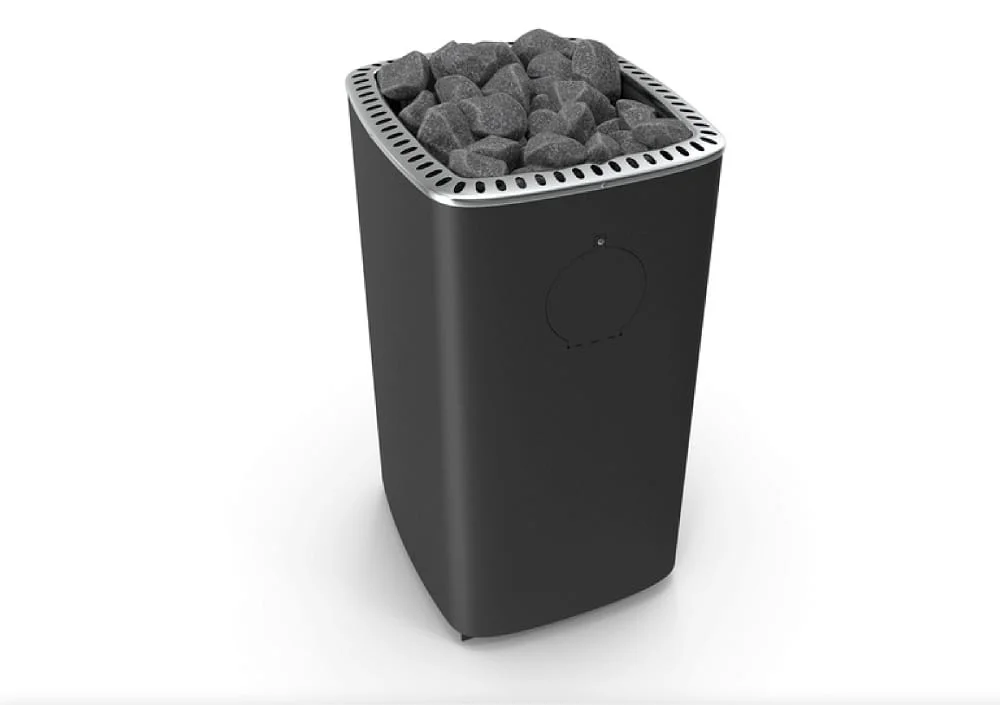

The Harvia Vega Sauna Heater is your passport to a world of modern luxury and relaxation. Its elegant design, effortless operation, and ease of installation make it the perfect choice for those seeking the ultimate sauna experience.
