PRODUCT DESCRIPTION
Shym Saunas’ Beta Commercial Ice Bath Chiller (2.7kW Cooling / 3.0kW Heating) is built for consistent daily cold and heat therapy. Designed for both residential and commercial use, it delivers reliable performance, stable temperature control, and smart connectivity in a compact, durable unit.
Ideal for ice baths, recovery routines, and contrast therapy, this chiller is made for wellness spaces that need dependable, repeat-use operation.
FEATURES
Commercial Cooling & Heating Performance
Model: C-1PUT2TW-1
Commercial-grade ice bath chiller designed for reliable heating and cooling in both home and professional recovery setups.
- Heating & cooling capacity: 3.0 kW heating / 2.7 kW cooling
- Temperature range: Cools water down to 3°C, heats up to 38–39°C
- Power supply: 220–240 V / 50 Hz
- Water circulation: High-flow 30 L/min circulation pump
- Refrigerant: R410A efficient cooling system
- Electrical protection: MCA 7.5 A / MOP 15 A
- Smart control: Built-in Wi-Fi with Android & iOS app control
- Dimensions: 700 × 450 × 495 mm (compact footprint)
Suitable for ice baths, contrast therapy, and commercial recovery environments where consistent temperature control is essential.
High-Efficiency Circulation & Temperature Stability
Built to maintain even water temperature during continuous use.
Circulation pump flow rate: 30 L/min
Pump rated power: 88 W
Pump rated current: 3.7 A
Prevents hot or cold spots in the bath
Ideal for 300–500L ice bath setups
Smart Control & App Connectivity
Simple control, locally or remotely.
Built-in touchscreen control panel
Wi-Fi app control (Android & iOS)
Adjust temperature, power, and schedules remotely
Monitor system status in real time
Note: Requires a stable 2.4G Wi-Fi network.
Commercial-Grade Electrical Protection & Safety
Designed for dependable long-term operation.
Compressor load: 4.8A (RLA) / 25A (LRA)
Minimum Circuit Ampacity (MCA): 7.5A
Maximum Overcurrent Protection (MOP): 15A
Automatic self-checking safety system
Fault detection and protection alerts
Anti-Freeze Protection & Continuous Operation
Built to perform in demanding environments.
Integrated anti-freeze protection
Protects internal components during low-temperature operation
Supports extended daily use in commercial settings
Indoor & Outdoor Ready Design
Flexible installation for any wellness space.
IPX4 water-resistant rating
Suitable for indoor or outdoor use
Compact commercial footprint: 700 × 450 × 495 mm
Quiet, Compact & Efficient
Powerful performance without unnecessary noise.
Low-noise operation
Space-efficient design
Suitable for homes, gyms, studios, and wellness centres
SPECIFICATIONS
| Specification | Details |
|---|---|
| Model | C-1PUT2TW-1 |
| Power Supply | AC 220–240V / 50Hz |
| Cooling Capacity | 2700 W |
| Heating Capacity | 3000 W |
| Operating Temperature Range | 3°C – 39°C |
| Minimum Water Outlet Temperature (Cooling) | 3°C |
| Maximum Water Inlet Temperature | 39°C (Cooling) / 38°C (Heating) |
| Compressor Load (RLA / LRA) | 4.8 A / 25 A |
| Fan Motor | 1.2 A / 0.12 HP |
| Circulation Pump Power | 88 W |
| Pump Rated Current | 3.7 A |
| Circulation Flow Rate | 30 L/min |
| Refrigerant | R410A |
| Refrigerant Charge | 640 g |
| Minimum Circuit Ampacity (MCA) | 7.5 A |
| Maximum Overcurrent Protection (MOP) | 15 A |
| Water Inlet Pressure Range | 0.1 – 0.4 MPa |
| Water Working Pressure Range | 0.03 – 0.22 MPa |
| Equipotential Bonding | 6 AWG |
| Control Type | Touch controller with Wi-Fi app control |
| Wi-Fi Function | App control (Android & iOS) |
| Waterproof Rating | IPX4 |
| Unit Dimensions (L × W × H) | 700 × 450 × 495 mm |

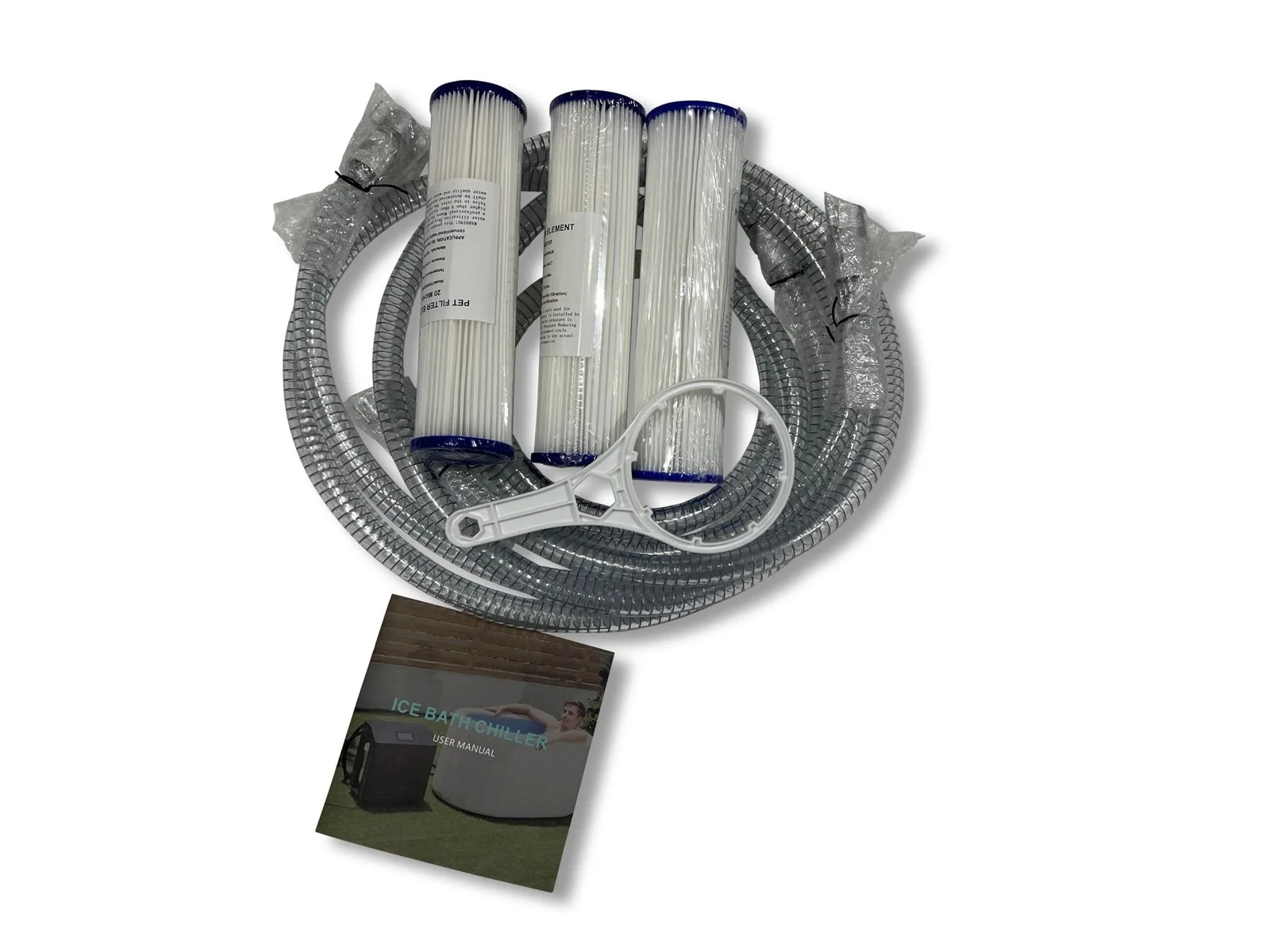

WHAT'S INCLUDED
Beta Commercial Ice Bath Chiller
Built-in water pump, filter, and ozone system
Stainless steel reusable filter core
Touch control panel
WiFi control capability
User manual
SAFETY GUIDELINES
To ensure the safe and effective operation of your Shym Saunas Beta Commercial Ice Bath Chiller, follow these important precautions and cautions:
- Do not block the fan outlet: Blocking the fan outlet will reduce the chiller’s heating and cooling efficiency.
- Keep the equipment clean: Regularly clean the chiller and its filtering device to maintain optimal performance and prevent any operational issues.
- Check voltage compatibility: Ensure that the chiller’s rated voltage matches the power supply of your home to prevent electrical problems.
- Do not turn the chiller upside down: This can damage internal components and impair its functionality.
- Always use with the filter installed: Operating the chiller without the filter can lead to water contamination and damage to the system.
- Maintain sufficient space: Do not install in closets, cabinets, or other small places. Ensure at least 100 cm of free space around the chiller to allow for proper ventilation and prevent overheating.
BUILT FOR SERIOUS COLD THERAPY
The Beta Commercial Ice Bath Chiller delivers dependable cooling and heating for daily use.
Designed for performance, control, and longevity, it’s a reliable solution for modern wellness and recovery spaces.
