The Harvia Cilindro PC XE Electric Sauna Heater combines premium stainless steel craftsmanship with advanced digital control. Its tall, pillar-style design and generous 90 kg stone capacity deliver soft, even heat for a relaxing and immersive sauna experience. The polished stainless steel finish adds a modern, elegant touch to any sauna interior.
FEATURES
Sleek Pillar-Style Design
High Stone Capacity
Holds up to 90 kg of sauna stones, ensuring excellent heat retention and the ability to produce gentle, long-lasting steam or more intense bursts, depending on where water is poured.
Durable Stainless Steel Construction
Built from premium stainless steel, the Cilindro PC XE is resistant to heat, humidity, and corrosion, ensuring lasting durability and reliable performance in any sauna environment.
Optimized Heat Circulation
The open pillar design maximizes airflow around the stones, enhancing heat distribution and improving energy efficiency while maintaining a consistent sauna temperature.
Advanced Digital Control

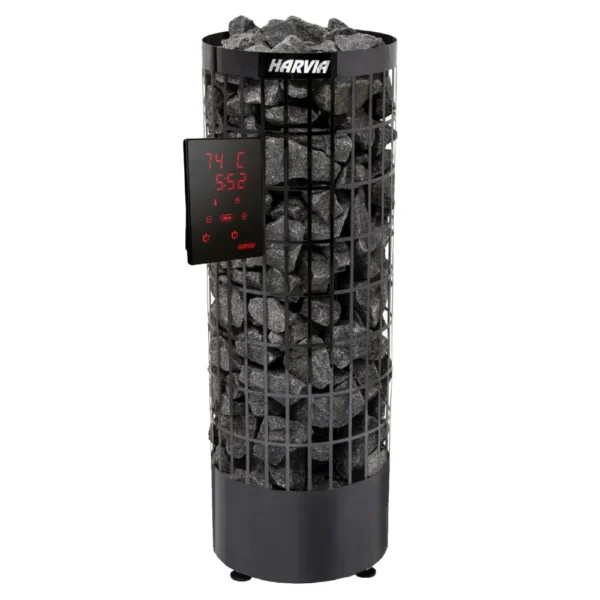

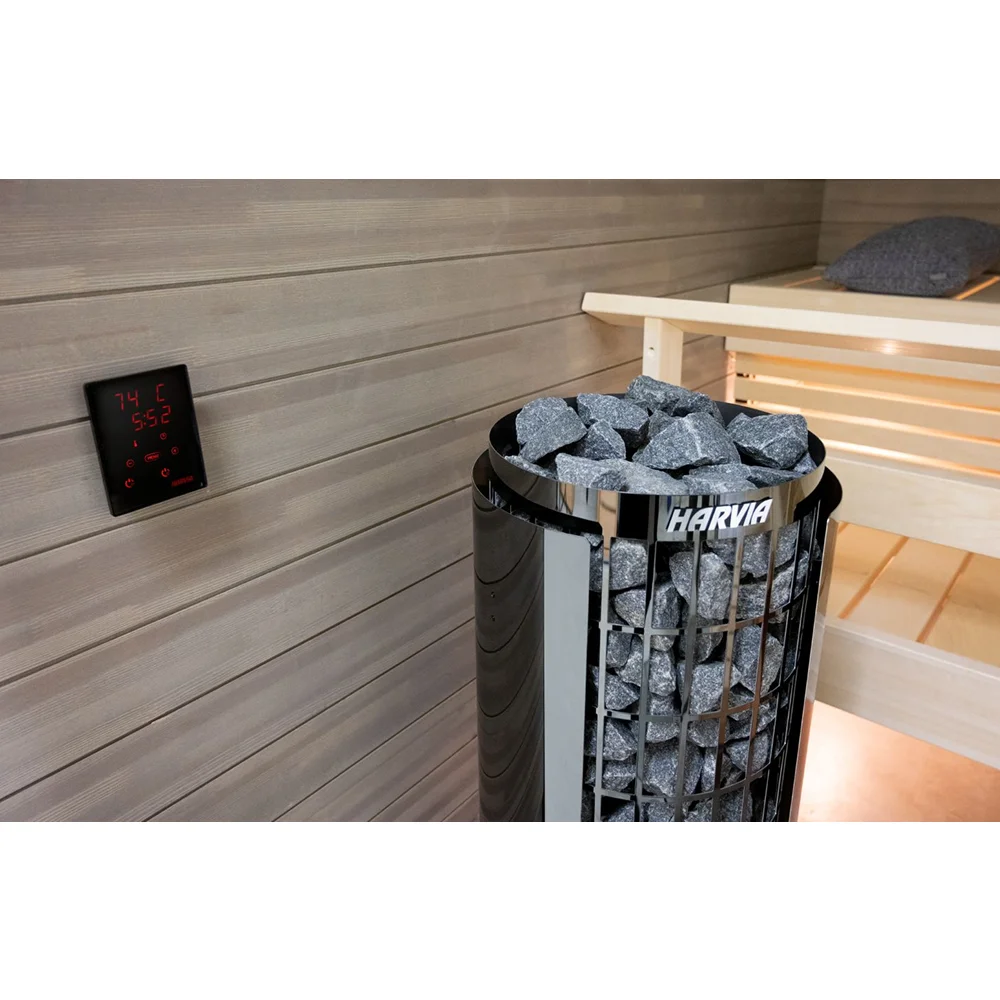

As an XE model, the Harvia Cilindro PC XE comes with the Harvia Xenio digital control panel, allowing precise adjustment of temperature, timer, and lighting. The backlit touch interface is easy to use, and with the optional Xenio WiFi kit, you can operate your sauna remotely through the MyHarvia app for maximum convenience.
Safety Features
Includes integrated safety device functions, such as a door switch or heater safety device, that can be connected directly to the unit. Equipped with overheating protection and temperature sensors to ensure safe and reliable operation at all times.
Instructions for Using Your Harvia Sauna Heater
Piling of the Sauna Stones
Properly arranging sauna heater stones is essential for both safety and warranty compliance. Follow these guidelines:
Use suitable sauna stone materials such as peridotite, olivine diabase, olivine, and vulcanite.
- Only use cleavage surfaces and/or rounded stones on your sauna heater.
- If heating elements come into contact with the stones, use rounded stones only in the outer layers of the stone space.
- Decorative stones should be placed loosely to allow air circulation and should not touch heating elements.
- Stones should be 5–15 cm in diameter.
- Wash off dust from the stones before piling them into the heater.
- When placing the stones, don’t drop stones into the heater.
- Don’t wedge stones between heating elements.
- Space stones to ensure proper air circulation.
- Pile stones to support each other rather than placing the weight on heating elements.
- Avoid forming a high pile of stones on top of the heater.
- Don’t place any objects or devices inside or near the heater that could alter airflow.
Heater Maintenance
Sauna stones can disintegrate due to temperature fluctuations. Rearrange stones at least annually, or more often with frequent sauna use.
Remove any disintegrated stones from the heater’s bottom and replace them with new ones to maintain optimal heating and prevent overheating.
Heating Your Sauna with Harvia Sauna Heater
When using the heater for the first time, both the heater and stones may emit odors. Efficiently ventilate the sauna room to remove these odors. If the heater’s output matches the sauna room’s size, it will take about an hour for a properly insulated sauna to reach the desired bathing temperature. The sauna stones typically reach this temperature simultaneously with the sauna room.
SPECIFICATIONS
| Model | PC70XE / PC90XE |
|---|---|
| Power Output | 6.8 kW (PC70XE) / 9.0 kW (PC90XE) |
| Sauna Room Size | 6–10 m³ (PC70XE) / 8–14 m³ (PC90XE) |
| Dimensions (W × H × D) | 320 × 930 × 320 mm |
| Stone Capacity | 90 kg |
| Material | Polished stainless steel |
| Installation Type | Floor-mounted |
| Control Type | Harvia Xenio digital control panel (optional WiFi kit for remote use via MyHarvia app) |
| Voltage / Phase | 230V 1N~ / 400V 3N~ |
| Frequency | 50/60 Hz |
| Protection Class | IPX4 |
| Net Weight | 10 kg |
| Gross Weight | 10.7 kg (PC70XE) / 10.9 kg (PC90XE) |
| Package Dimensions (W × H × D) | 330 × 975 × 330 mm |
| Warranty | Residential: 2 years (subject to manufacturer’s terms & conditions) |
WARRANTY
• Residential: 3 years (24 months base + 12-month extension when registered and Harvia stones are used)
• Commercial: 2 years (heating elements covered for 6 months; Harvia stones required)
WHAT’S INCLUDED
- Harvia Cilindro PC XE Electric Sauna Heater (Model: PC70XE / PC90XE)
- Harvia Xenio Digital Control Panel with connection cable (included with XE models)
- Installation Manual with safety, setup, and operating instructions
- Mounting Brackets and Fasteners for secure installation
- Product Warranty Information
Experience Modern Luxury with Harvia Sauna Heater
