Bring the benefits of a large stone surface to a small sauna with the Harvia Cilindro PC66E 6.6 kW Black Steel Electric Sauna Heater.

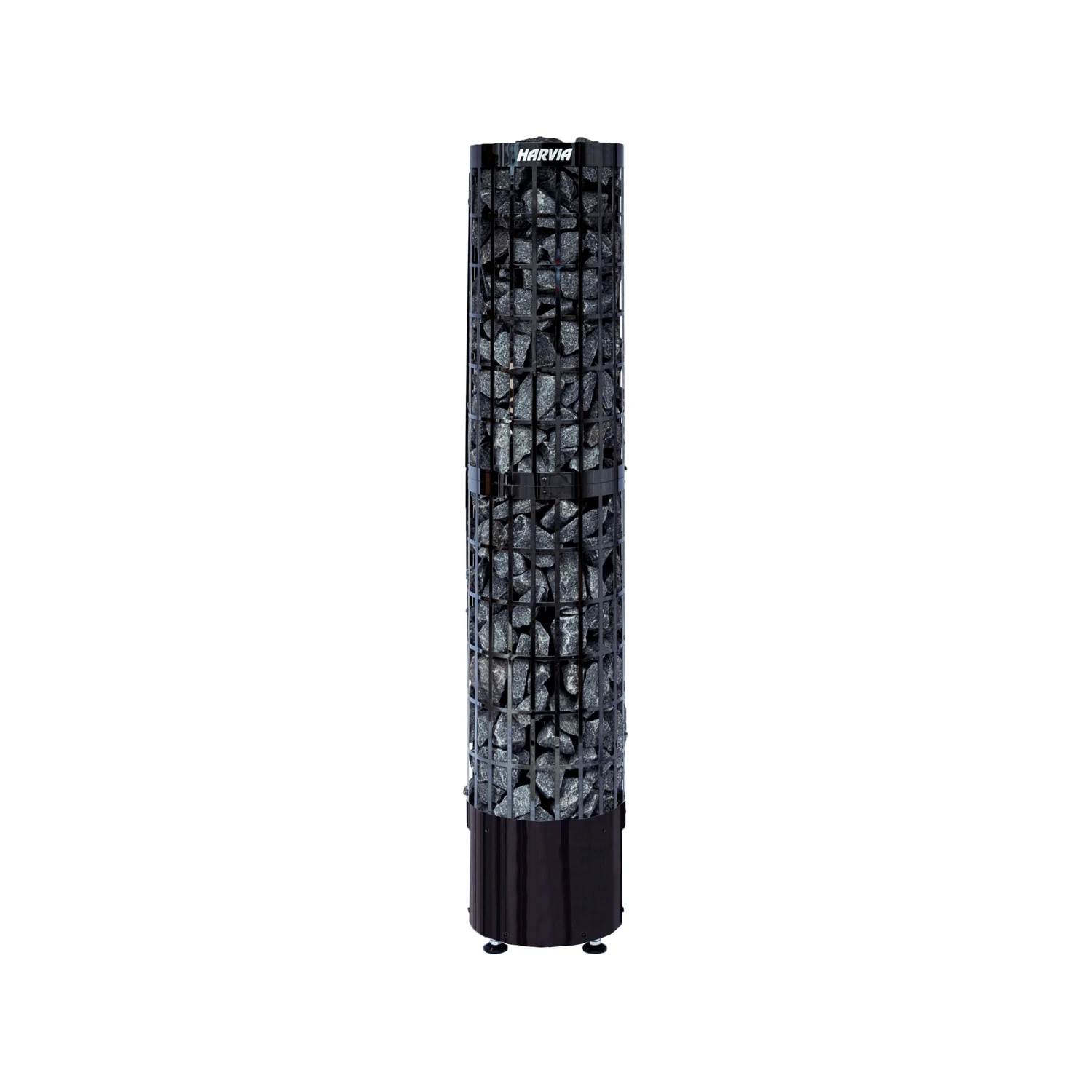

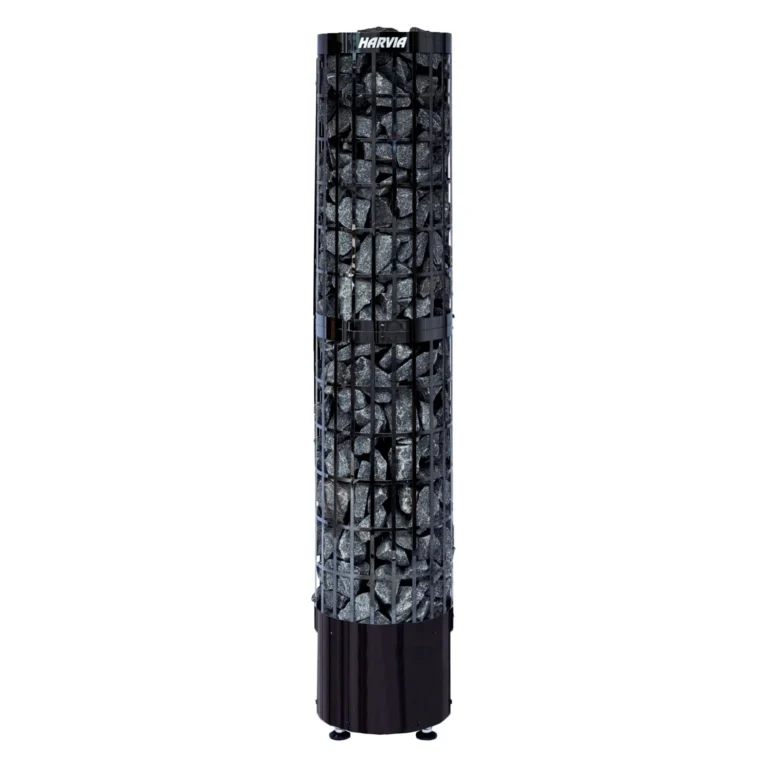

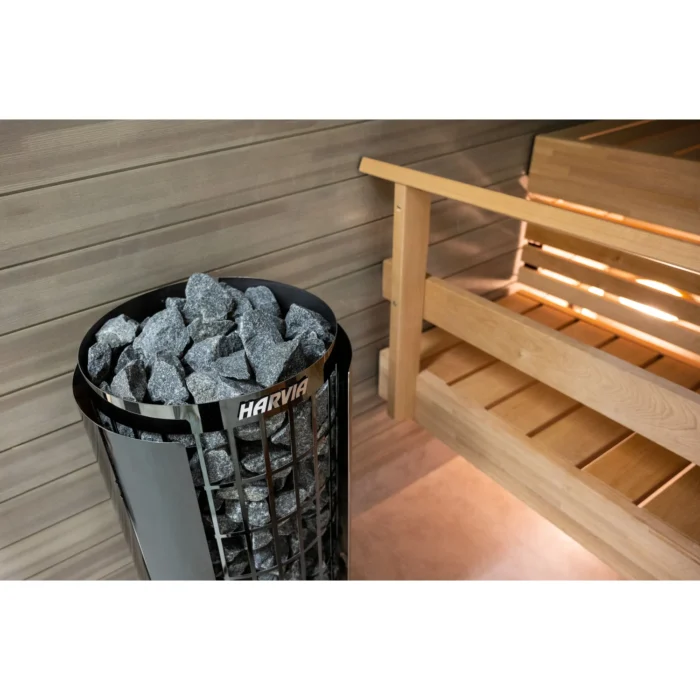

The Cilindro PC66E is a tall, narrow pillar heater rated for sauna rooms of 5 to 9 m³. It stands 1340 mm high on a footprint of just 255 mm x 255 mm and holds up to 75 kg of sauna stones, which is what brings the benefit of a large stone surface to a small room. The tall and narrow shape also makes it a well-suited replacement for a wall-mounted heater.

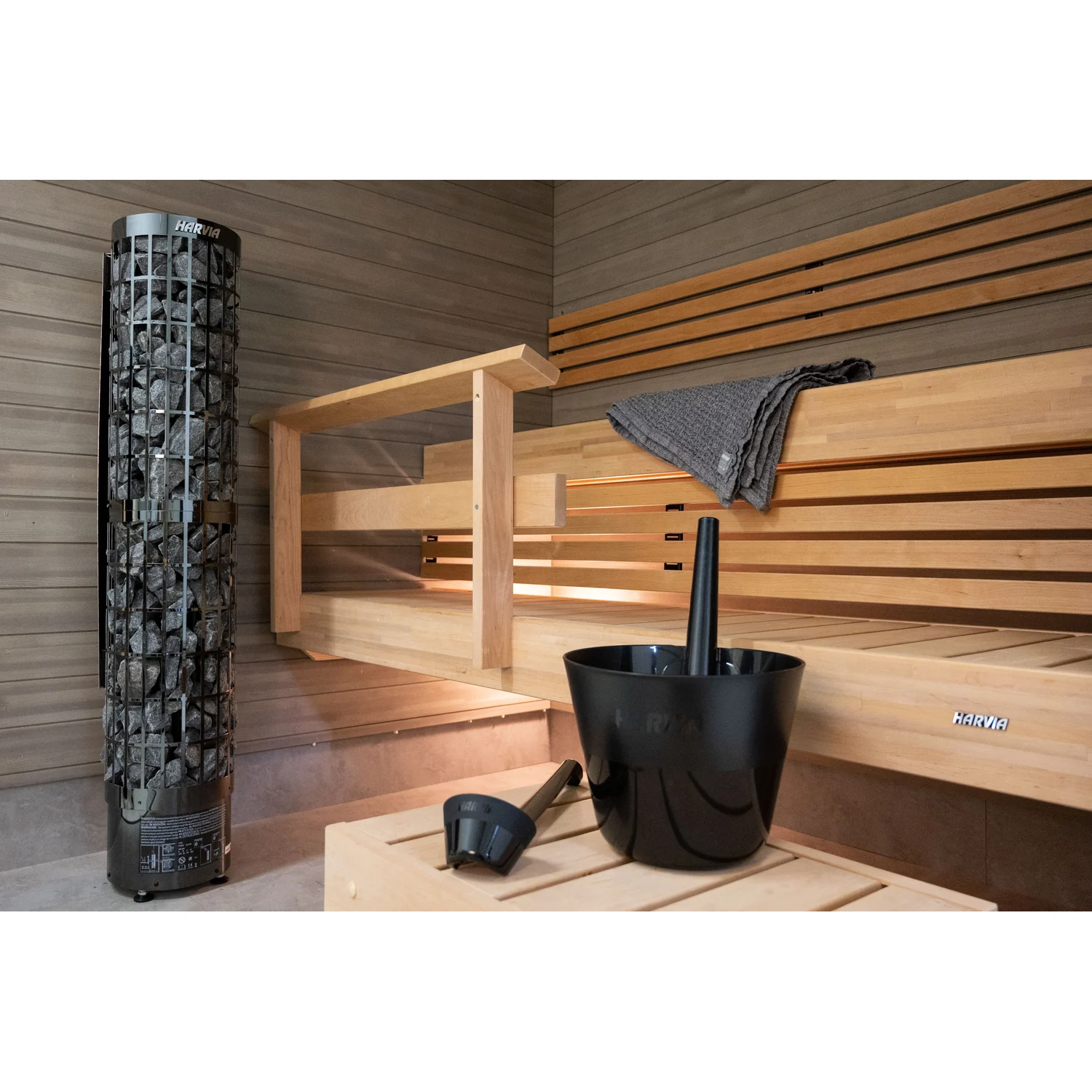

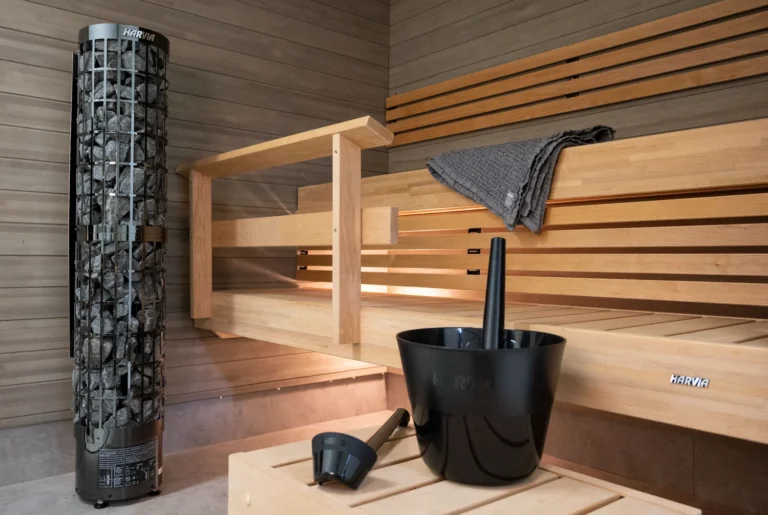

The stylish black steel colour gives the heater a modern look, and the pillar form fits into a wide range of sauna interiors and installations. The heater can stand free on the floor, be embedded in the sauna benches, or be placed beside a glass wall.
It can be wired either way. The PC66E runs on 400 V 3N~ three-phase or on 230 V 1N~ single phase. The arrangement depends on the supply available at the property and is set at the heater’s terminal block by your licensed electrician.
This is an “E” model. There are no controls on the heater body, so it must be operated by a separate Harvia control unit, which is sold separately. The temperature sensor is supplied in the box. Sauna stones are also sold separately.
Key Specifications
Any questions? We’re here to help. Send us a message or chat with one of our sauna specialists.
Did you know? We offer one of Australia’s largest ranges of premium sauna products & materials — heaters, hot tubs, accessories, and more
Bring the benefits of a large stone surface to a small sauna with the Harvia Cilindro PC66E 6.6 kW Black Steel Electric Sauna Heater.
The Cilindro PC66E is a floor-standing pillar heater rated for sauna rooms of 5 to 9 m³. Its column stands 1340 mm high on a footprint of only 255 mm x 255 mm, so it takes up very little floor area while carrying up to 75 kg of sauna stones. Harvia designed it to bring the benefits of a large stone surface to small saunas, and the tall, narrow shape makes it a well-suited replacement for a wall-mounted heater.
The 1340 mm column carries up to 75 kg of stones while occupying only 255 mm x 255 mm of floor space.
At 6.6 kW it is rated for sauna rooms from 5 to 9 m³.
This heater has no controls on it. The Cilindro PC66E is an “E” model. There is no timer, thermostat, or switch on the heater body, and it cannot be turned on or regulated on its own.
A separate Harvia control unit is required and is sold separately. The heater will not operate without one. The control units we offer with this heater are shown in the options on this page. Please make sure a control unit is included in your order.
The temperature sensor is included. The heater ships with its temperature sensor, along with the safety shield and fastening kit.
Do not confuse this with the manually switched models. The Cilindro PC66 (item code HPC66400M) is controlled by manual switches. The PC66E (item code HPCE66400M) is the version described on this page, and it is controlled by a separate control unit.

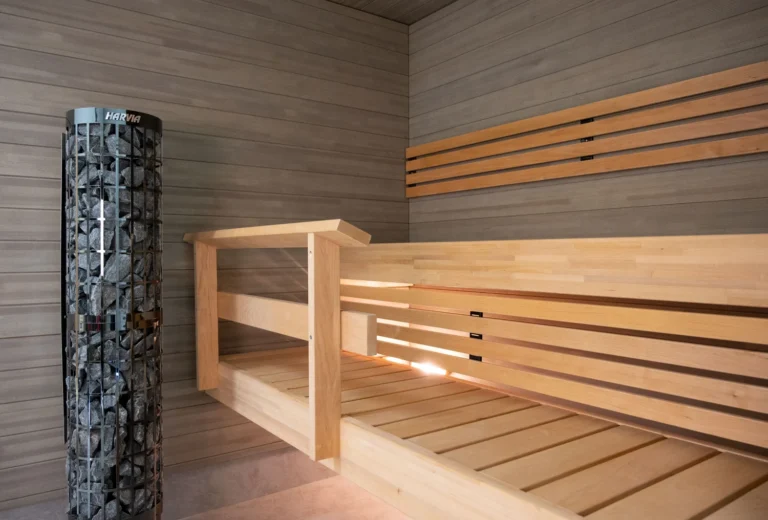

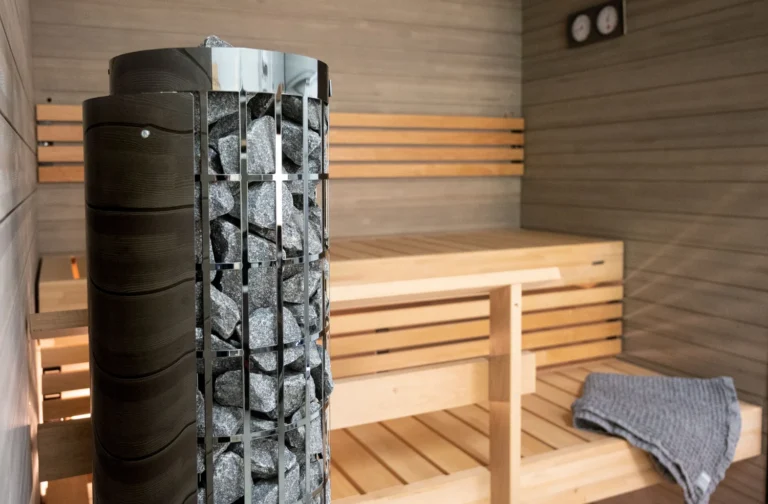

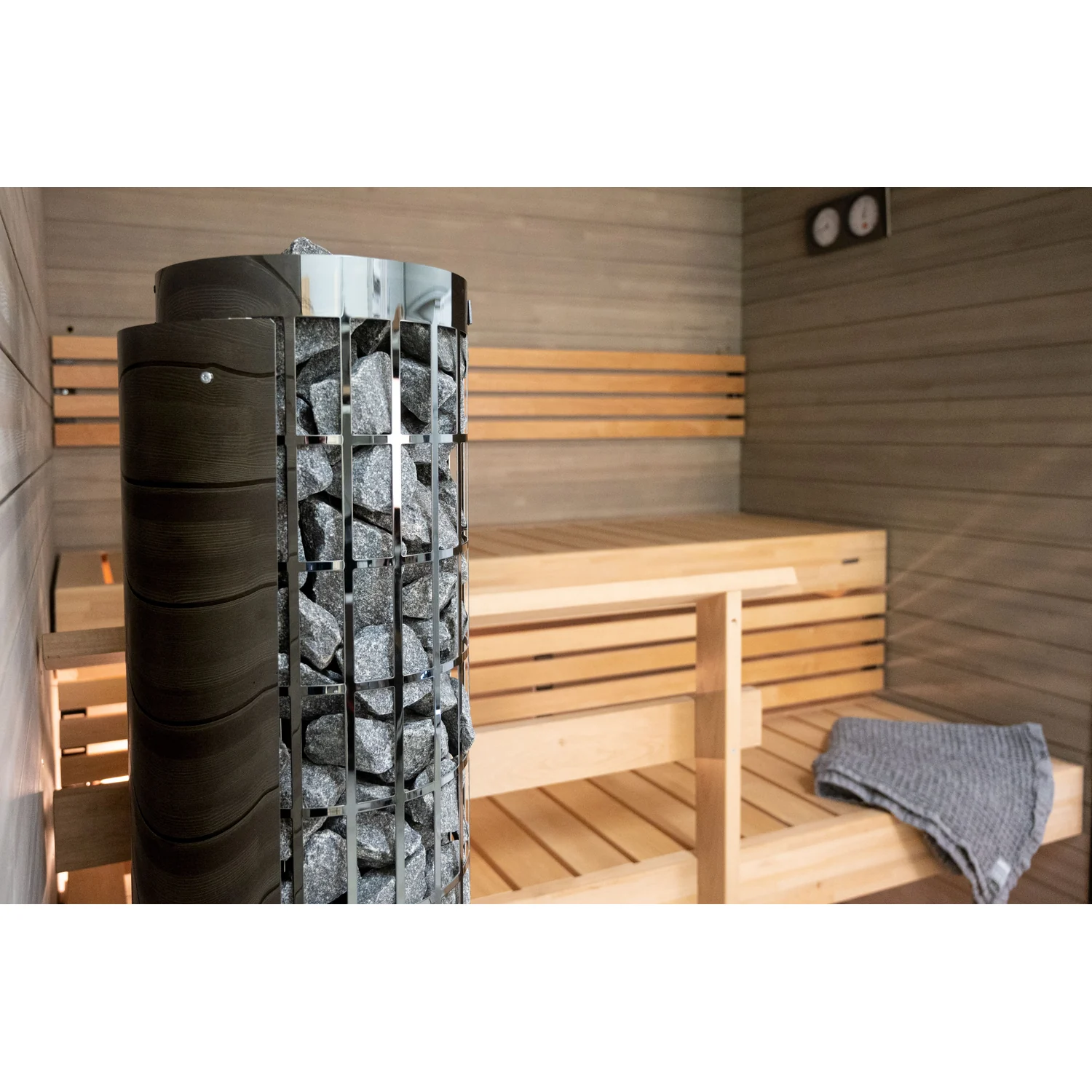

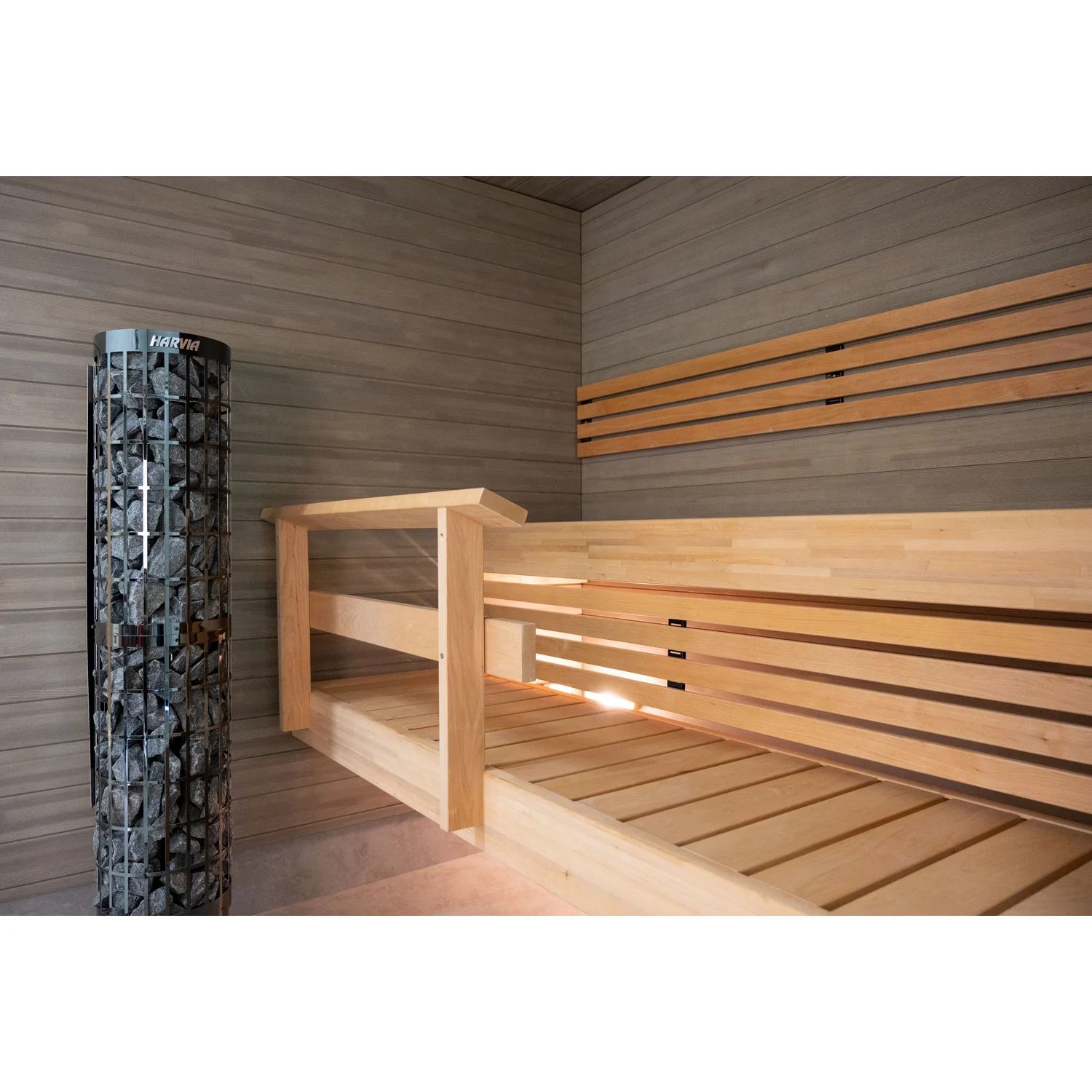

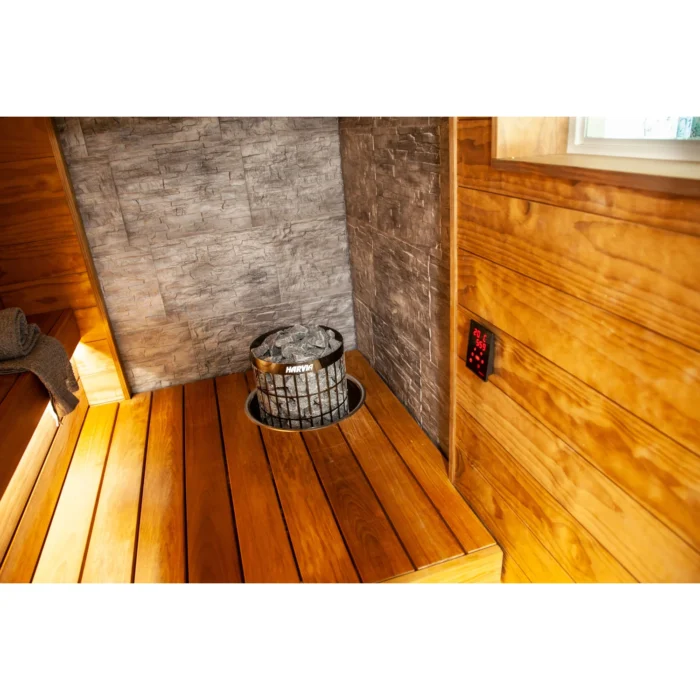

The pillar form also gives you options for how the sauna room is laid out. The heater fits into various types of sauna interiors and installations, and it can stand free on the floor, be embedded in the sauna benches, or be placed beside a glass wall. Where the heater is embedded in a bench, the published safety distances and the protective sheath requirement still apply.
The same heater wires to 400 V 3N~ three-phase or to 230 V 1N~ single phase, so it suits both a dedicated three-phase supply and a single-phase home.
The tall and narrow design makes it a well-suited replacement where a wall-mounted heater once sat.
The stylish black steel colour provides a modern touch for your sauna.
The pillar design suits various types of sauna interiors and installations.
| Model | HPCE66400M |
|---|---|
| Type Code | PC66E |
| Power Output | 6.6 kW |
| Sauna Room Size | 5 to 9 m³ (insulated, panelled walls) |
| Control Type | Controlled by a separate control unit. A Harvia control unit is required and is sold separately. |
| Stone Capacity | Up to 75 kg |
| Stone Size | 5 to 10 cm diameter |
| Colour | Black Steel |
| Main Material | Steel |
| Installation Location | Floor |
| Installation Orientation | Vertically |
| Use Environment | Interior, wet area |
| User Group | Households |
| Voltage | 400 V 3N~ three-phase, or 230 V 1N~ single phase |
| Electrical Frequency | 50/60 Hz |
| Fuses, 400 V 3N~ three-phase | 3 x 10 A |
| Supply Cable, 400 V 3N~ three-phase | 5 x 1.5 mm² |
| Fuse, 230 V 1N~ single phase | 1 x 35 A |
| Supply Cable, 230 V 1N~ single phase | 3 x 6 mm² |
|---|---|
| IP Rating | IPX4 |
| Sensor Cable Length | 5 m |
| Storage Temperature | 0 °C to 50 °C |
| Certificates | CE and EAC (European and Eurasian conformity marks) |
| Product Width | 255 mm |
| Product Depth | 255 mm |
| Product Height | 1340 mm |
| Net Weight | 11 kg |
| Gross Weight | 14 kg |
| Package Width | 300 mm |
| Package Height | 1375 mm |
| Package Depth | 300 mm |
| Item Number Harvia | HPCE66400M |
| EAN / GTIN | 6417659026444 |
| Electrical Number (STK) | 8266741 |
| Packaging Material | Cardboard |
| Sales Unit | pcs |
Planning notes for the room:
Not included: The Harvia control unit is not included and must be purchased separately, as the heater has no controls of its own. Sauna stones are also not included and are required for the heater to operate correctly.

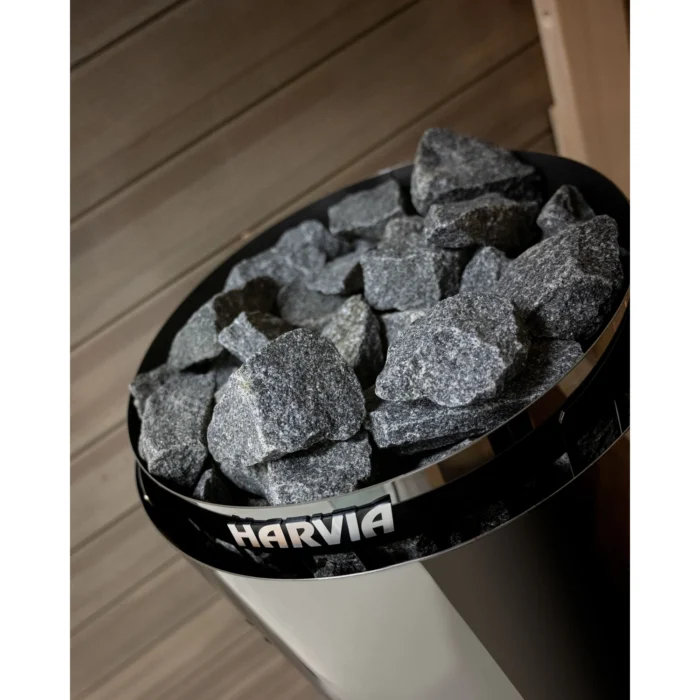

Piling of the Sauna Stones
How the stones are piled has a large effect on both the safety and the heating capability of the heater. Follow these guidelines:Heater Maintenance
Sauna stones disintegrate in use because of the large variation in temperature. Rearrange the stones at least once a year, or more often if the sauna is in frequent use. At the same time, remove any pieces of stone from the bottom of the heater and replace disintegrated stones with new ones. This keeps the heating capability optimal and avoids the risk of overheating. Pay attention especially to the gradual settling of the stones, and be sure that the heating elements do not appear with time. The stones settle most rapidly within two months of piling, so expect to top them up early on and keep a few spare stones on hand. The overheat protector can also trip at temperatures below -5 °C in storage or transport. Bring the heater into a warm room before installation and reset the protector before use. On the PC66E the reset is made at the control unit, not on the heater.Heating Your Sauna with Harvia Sauna Heater
When using the heater for the first time, both the heater and the stones may emit odours. Ventilate the sauna room efficiently to remove these odours. If the heater output matches the size of the sauna room, it will take about an hour for a properly insulated sauna to reach the desired bathing temperature. The sauna stones normally reach that temperature at the same time as the sauna room. A suitable temperature for the sauna room is about 65 to 75 °C.The stylish black steel colour provides a modern touch for the sauna. The body is steel, the protection rating is IPX4, and the heater is built for use in an interior wet area. It is mounted vertically on the floor and is intended for household use. Because it is an “E” model, it is operated by a separate Harvia control unit, which is sold separately.
